Permanent Electrostatic Filters



Construction of Air-Care
Permanent Electrostatic Filters

Overview

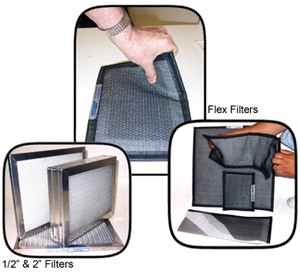

Air-Care <br>Permanent Electrostatic Filter Frame Types

These washable permanent electrostatic air filters are available in standard and custom sizes for virtually any configuration of air system and application.

In addition to two types of rigid frames, flexible frames are also available for applications where a rigid frame cannot be used.

The ElectraGold filter comes with a 1" frame. The ElectraSilver filter is available in depths between 1/2" and 6". All ElectraFlex filters are 1/4" thick and fit most 1" applications.

All 94% filters and the flexible frame 88% filters contain an EPA registered anti-microbial material to inhibit the mold and bacteria growth on the filter surface and are resistant to damage casued by UV bulbs.


ElectraGold

Air-Care ElectraGold

The ElectraGold filter has a premium quality extruded aluminum, gold anodized frame with a durable and attractive finish. It is constructed with four separate pieces, connected by screws at each side for enhanced sturdiness. There are drainage holes on each side to allow water to easily escape after washing.

The ElectraGold Permanent filter is configured for 94% arrestance. It has an antimicrobial layer and is resistent to UV radiation. It is only available in 1-inch thickness.

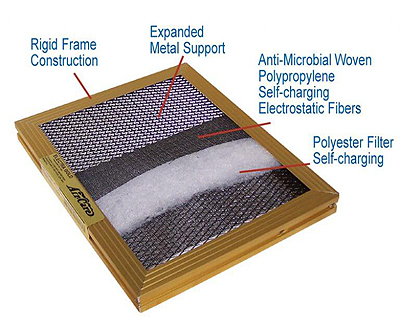

Layers of Air-Care Electragold 9400 washable filter

ElectraSilver

Air-Care ElectraGold

The ElectraSilver filter has a single piece, roll-formed steel frame with a durable and attractive finish. It has drainage holes on each side to facilitate the removal of water after washing. Silver framed filters are available from 1/2" to 6-7/8" deep. The deeper filters make excellent replacements for disposable filters for Aprilaire, SpaceGard, Honeywell, Trion, Lennox, Goodman, Bryant/Carrier, Purolater, and other furnace systems.

The 1/2-inch and 1-inch ElectraSilver frames have 88% arrestance filters. ElectraSilver frames thicker than 2-inches have 94% arrestance filters and include an anti-microbial layer and are UV resistent.

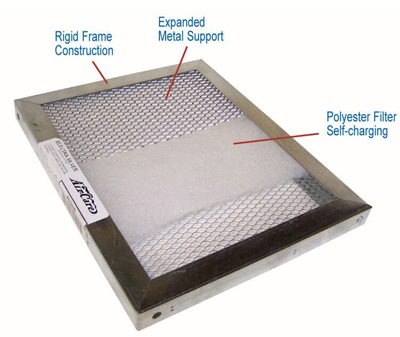

Layers of Air-Care Electragold 9400 washable filter

Flexible Frame Filter

Air-Care ElectraGold Flexible frames are available for applications where a rigid frame cannot be used. The ElectraFlex filter has the same construction and specifications as the ElectraSilver and ElectraGold filters except there is no rigid aluminum frame. Rather than a hard frame, the ElectraFlex has a polypropylene webbing that is sewn around the media. ElectraFlex filters are available with either 88% or 94% arrestance.

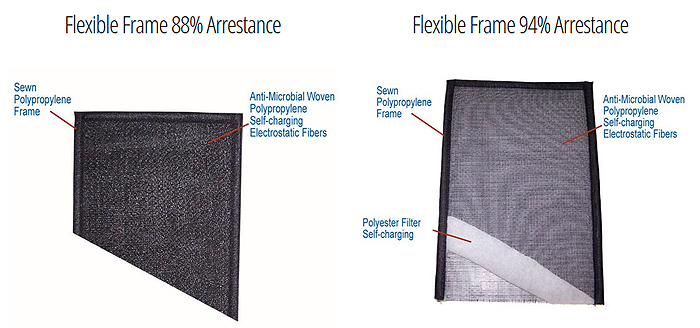

Layers of Air-Care Electragold 9400 washable filter


Specifications

Gold 94 Silver 88 Flex 94 Flex 88
Filtration Efficiency 94% 88% 94% 88%
Dust Holding Capacity 165 grams 119 grams 165 grams 119 grams
Air Flow Resistance 0.12 0.08 0.12 0.08
Frame Quality Excellent Good Flexible Flexible
Frame Depth (Thickness) 1″ 1/2″, 1″ or 2″ 5/8″ 3/8″
UV Resistant Yes No Yes Yes
MERV Rating 9 8 9 8
Spec Sheet View View View View


Click here for prices, sizes, and selection information
